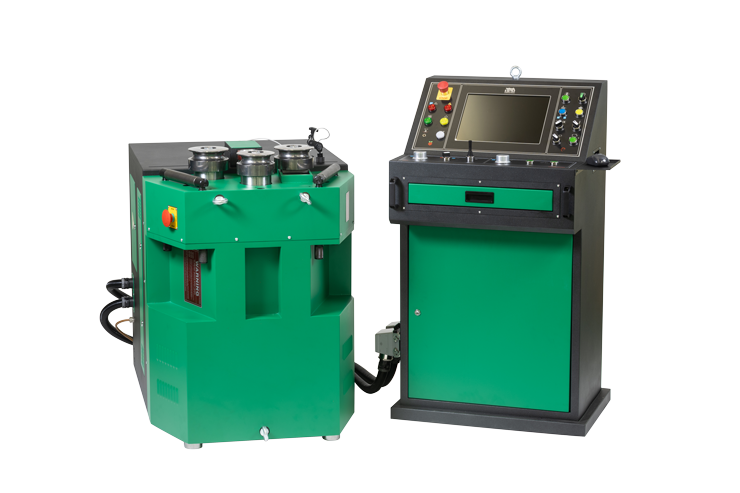

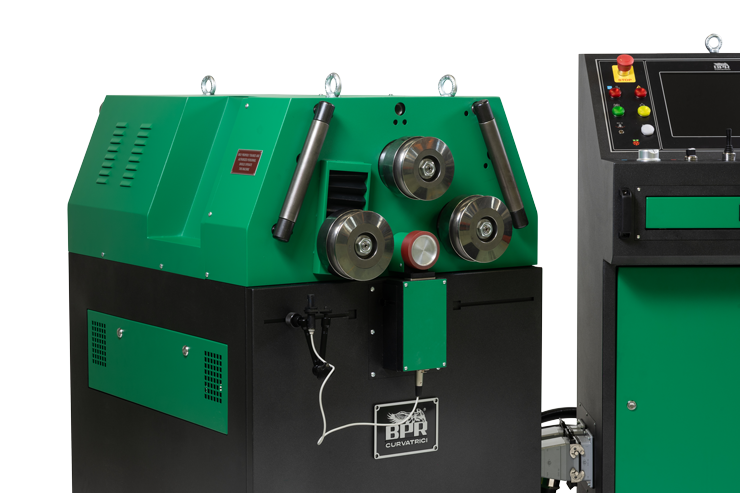

Asymmetric bending machine
Hydraulic positioning Computerized numerical control CNC
Technical Data

Shafts diameter mm 35
Rolls diameter (on request)
Self-braking gear motor 1.1 kW (50 HZ)
Pump motor 3 kW (50 HZ)
Maximum working pressure BAR 180
Heat exchanger for oil cooling

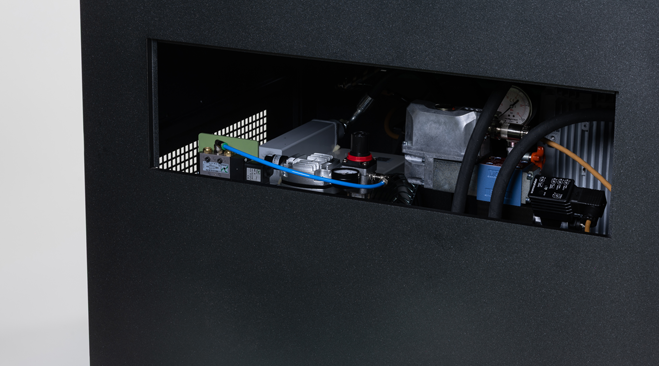

Hydraulic cylinder thrust power kg 5500Hydraulic unit, mounted on a slide tray with rear insertion complete with tank-pump-air/oil heat exchanger, control servovalve, air ompressor
Variable rotation speed RPM 1-30
Variable translation speed of bending roll 0-31 mm/sec

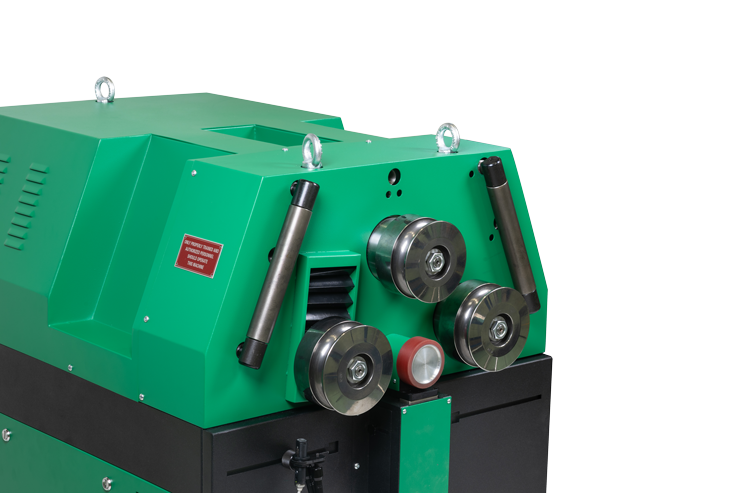

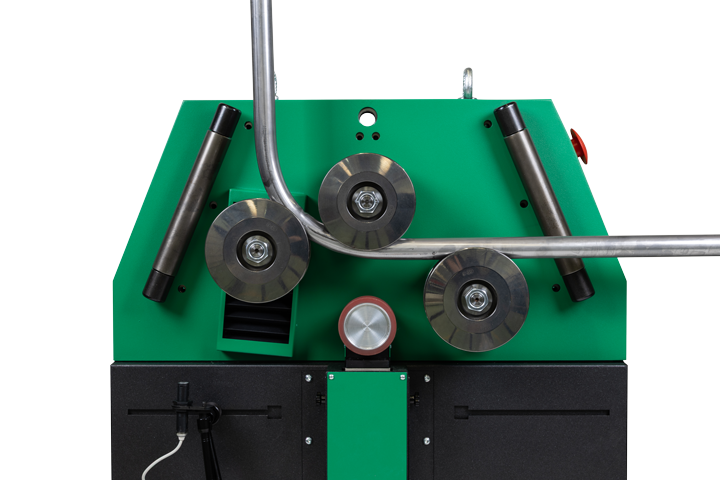

Three driving rollers with smooth back 20MnCr5 with hardness HRC 58 ÷ 60
Steel frame FE 430B, heavily dimensioned
Shafts in high strength alloy steel 38NiCrMo4, heat treated and ground to precision tollerance
Gears in special alloy steel 38NiCrMo4 with precision ground teeth
Torque limiter mounted on the rear gear assembly
Working position with vertical and/or horizontal shafts
Machine weight 455 kg
Console weight 104 kg
Machine dimensions mm Base 740x1020 Height 1,110
Console dimensions mm Base 590x710 Height 1,220

R=40 kg/mm2 - BASED ON 60.000

ATTENTION: This machine is not supplied with standard rolls

Download brochure

Bending capacity

Computerized numerical control (CNC) bending machine operating in manual and automatic cycle, with direct insertion of the radius and bending data, to obtain many different shapes and developments

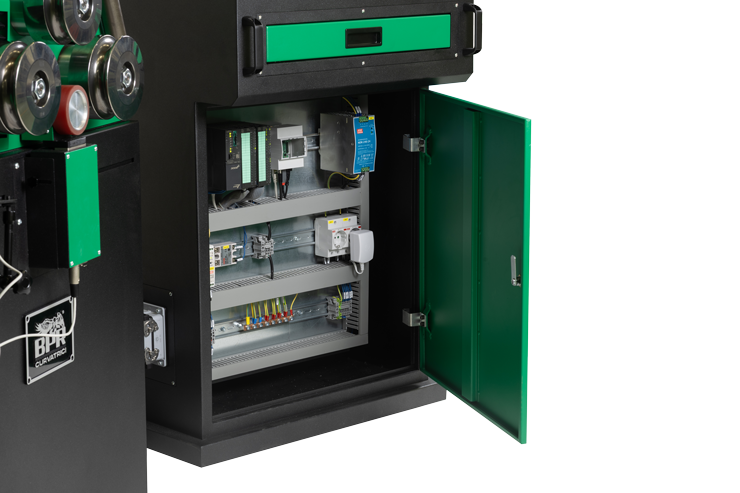

Electronic control consisting of a central 64-bit PLC system for controlling the movement of the A1 -A2 axes and a computer - 64 bit - 1.4 GHz - 1 GB RAM, complete with 16 GB SD card

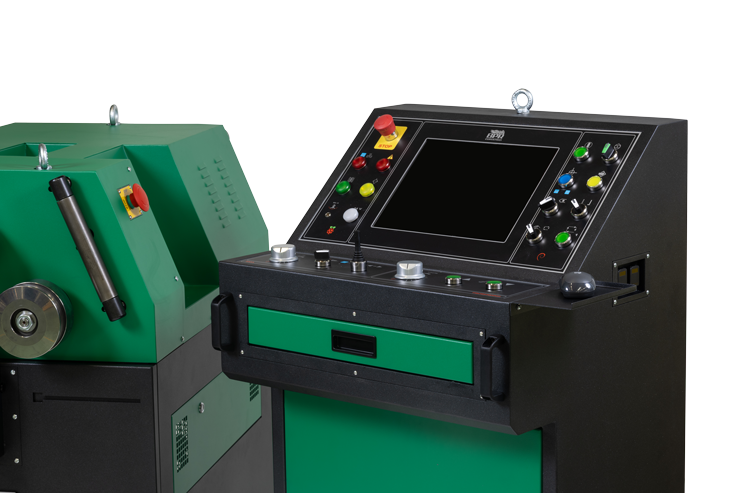

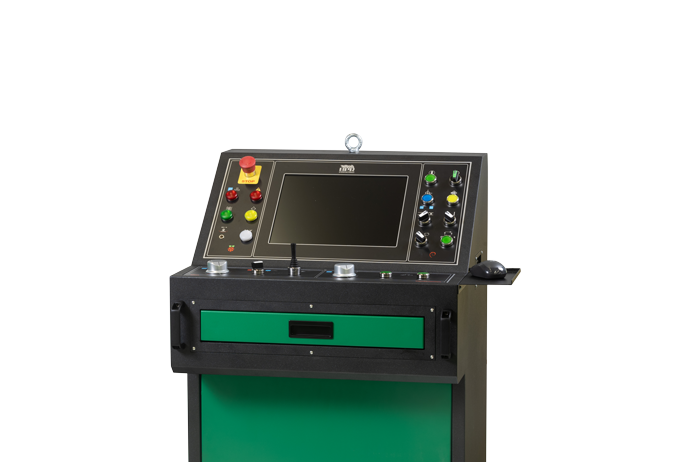

LCD-VGA-HDMI-15 “color active matrix monitor, for the interface with the operator, both assembled on an independent console

Side ports for female USB and LAN RJ45 connections

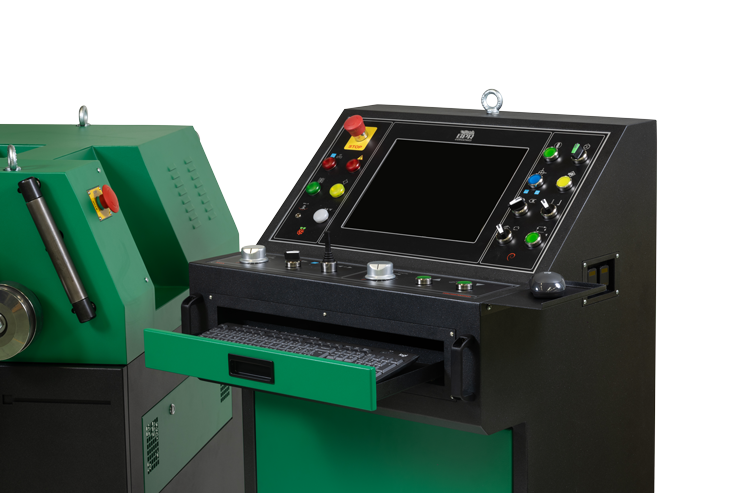

Retractable control keyboard and control mouse
Multi language BPR bending program “PROBENDING ® system” facilitated with acquisition of the type of material and the section of the profile, possibility of filing the work performed with predefined and parameterized bending with memorization of the program combined with the selected material

Acquisition and transfer of DXF files
Execution of variable radius bends, with interpolated axes system
Ramps of acceleration and deceleration, stop and inversion of the cycle, self-learning program and mirror cycle

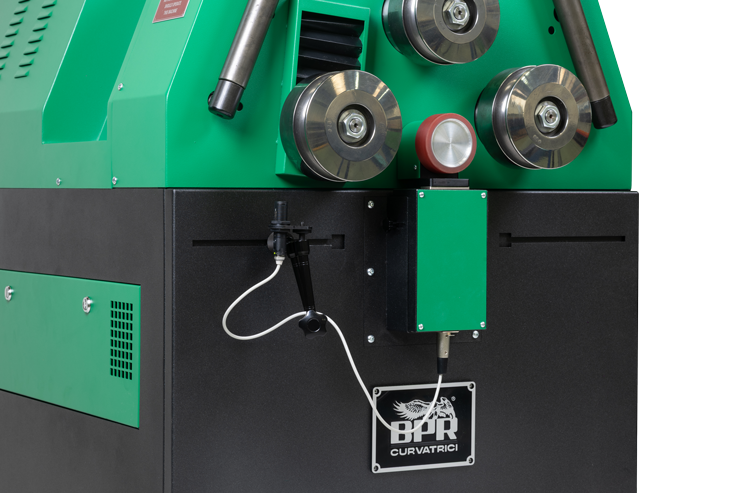

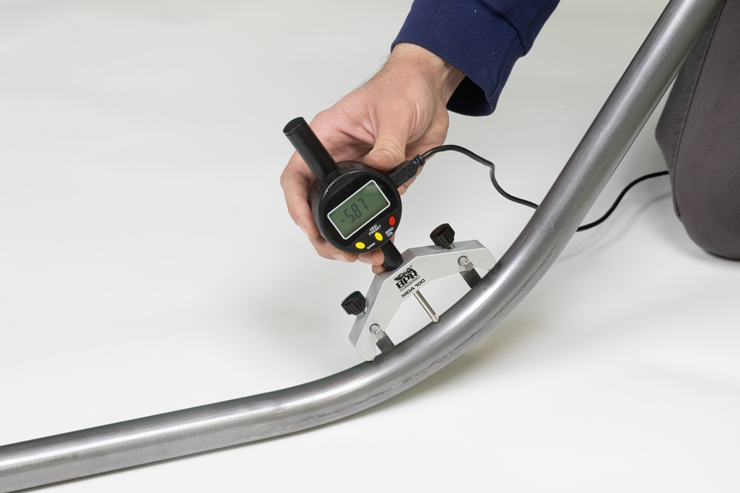

Progress reading encoder with pneumatic movement contact, cycle start limit switch, connection for digital archimeter

Electronic control of the speed settings of moving of the bending roll (up to 31 mm/sec) and of the profile displacement (up to 30 RPM) in manual or automatic cycle
Possibility of direct connection with an external personal computer via RJ-45 (LAN) with diagnostics and automatic setup of the machine. USB connection for transferring and copying of bending programs

Remote connection for remote assistance and preparation for INDUSTRY 4.0

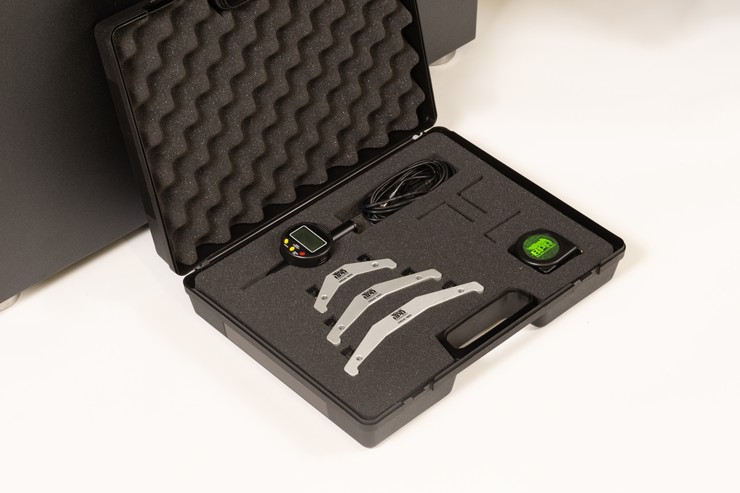

Control console Rotation control pedal (optional) Lateral rectifiers Service tools kit Instruction manual
