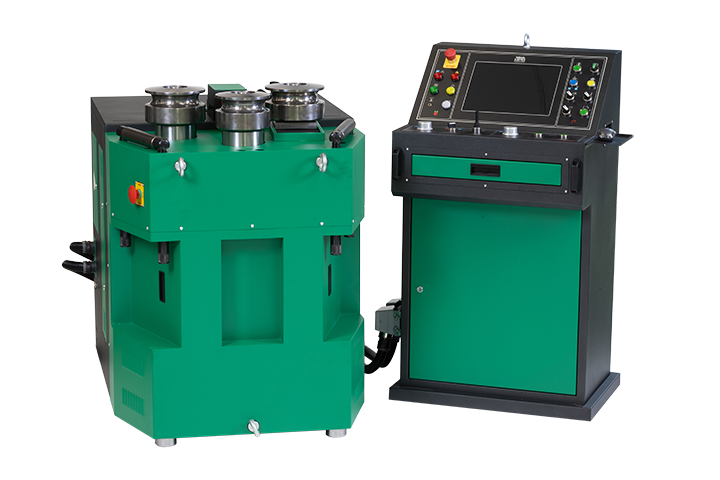

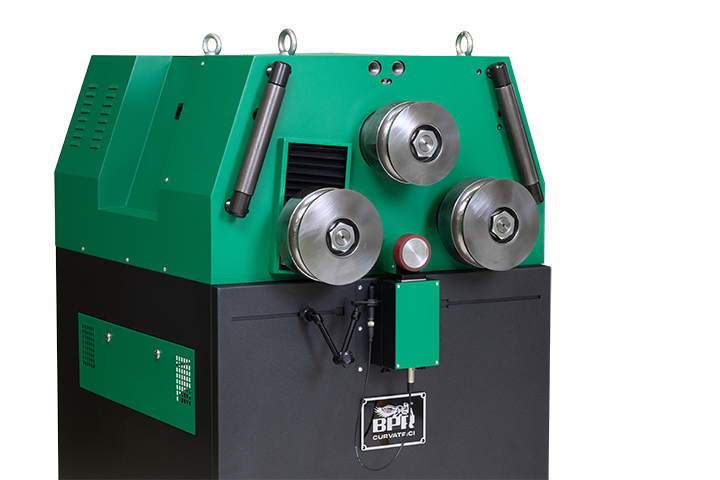

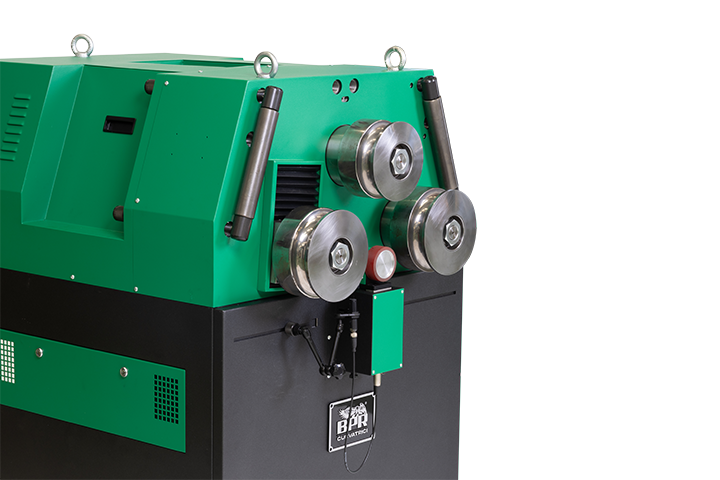

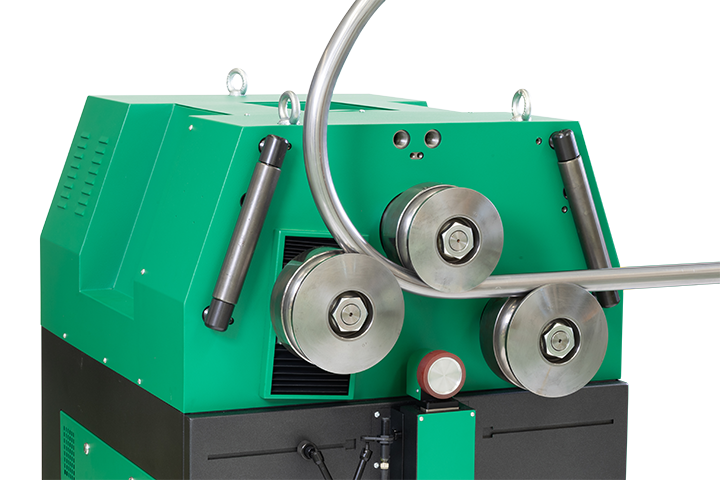

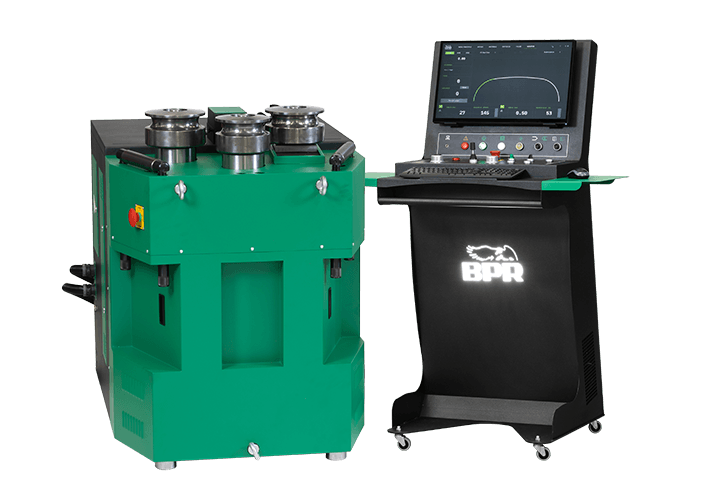

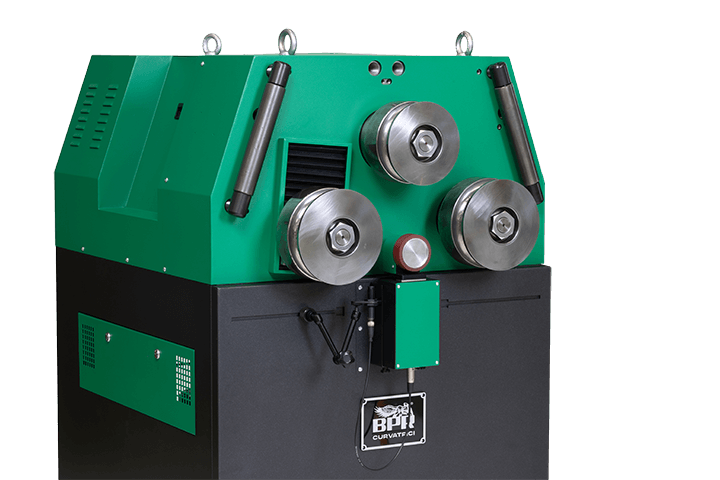

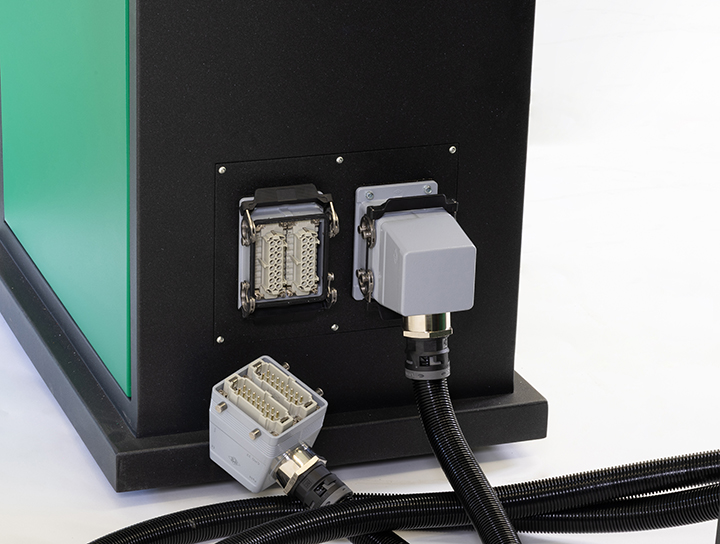

BA50

Asymmetric bending machine
Hydraulic positioning Computerized numerical control CNC
Technical Data

Shafts diameter mm 50
Roller diameter: on request
Self-braking gear motor 2.2 Kw (50 HZ)
Pump motor 4 Kw (50 HZ)
Maximum working pressure bar 180
Air/oil heat exchanger for hydraulic liquid cooling
Thrust power of the hydraulic cylinder kg 13,500

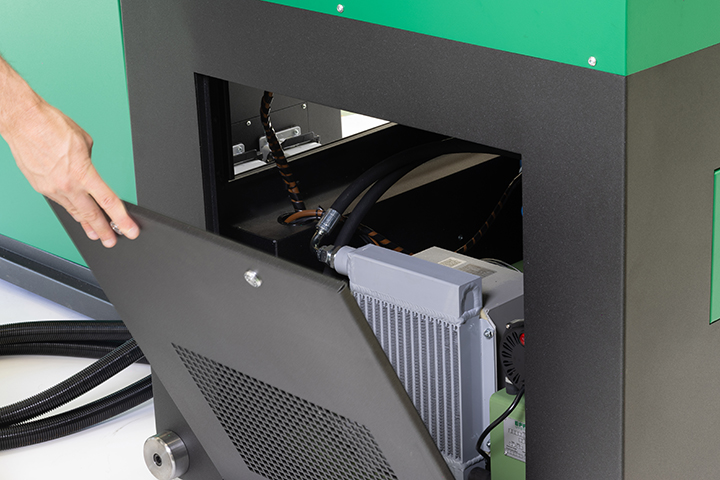

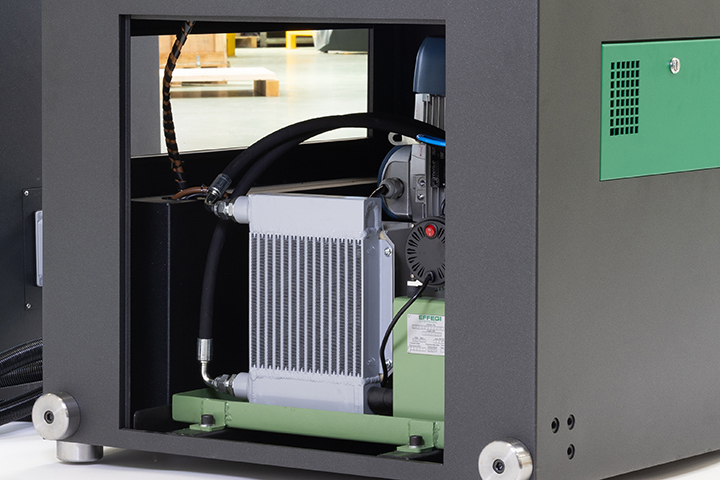

Hydraulic unit, mounted on a slide tray with rear insertion complete with tank-pump-air/oil heat exchanger, control servovalve, air compressor
Variable rotation speed G/1‘:1-22
Variable translation speed: 0-17 mm/sec

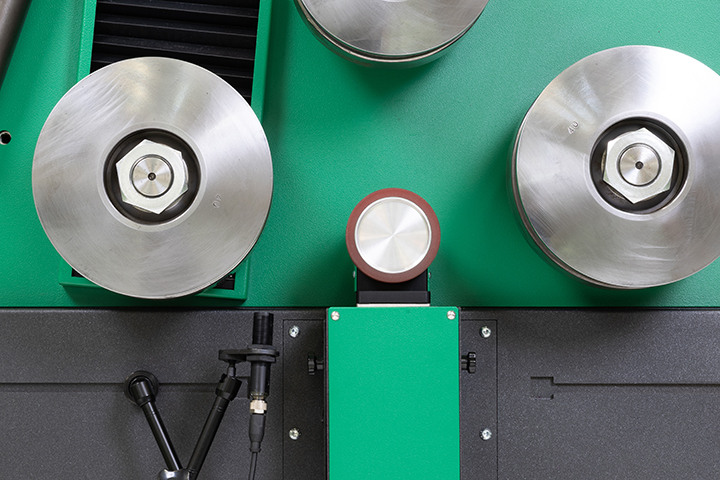

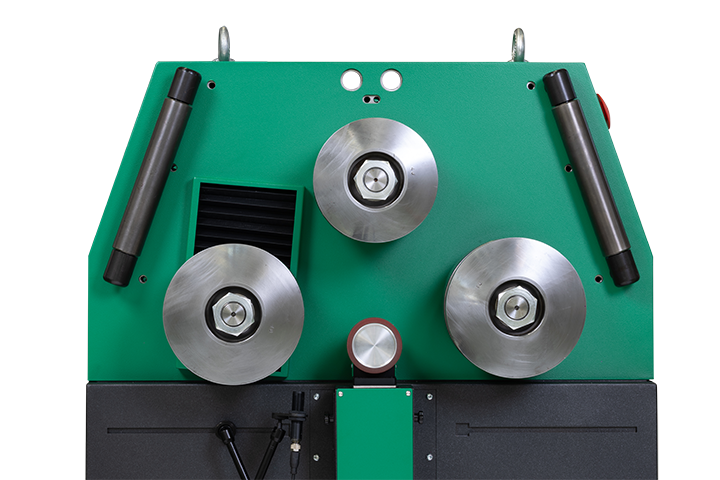

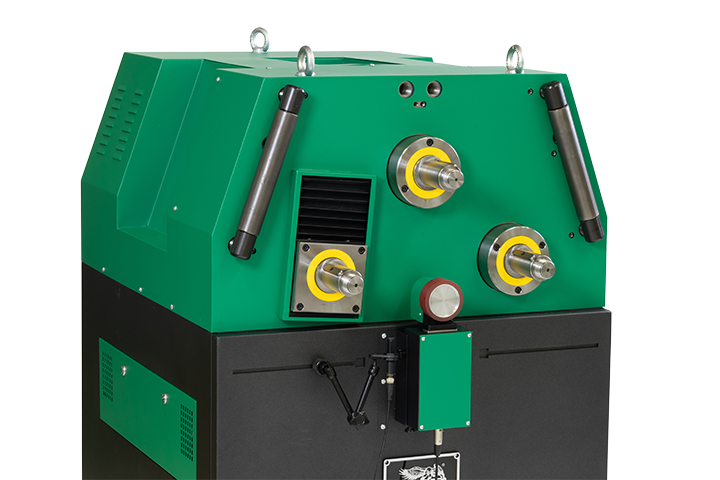

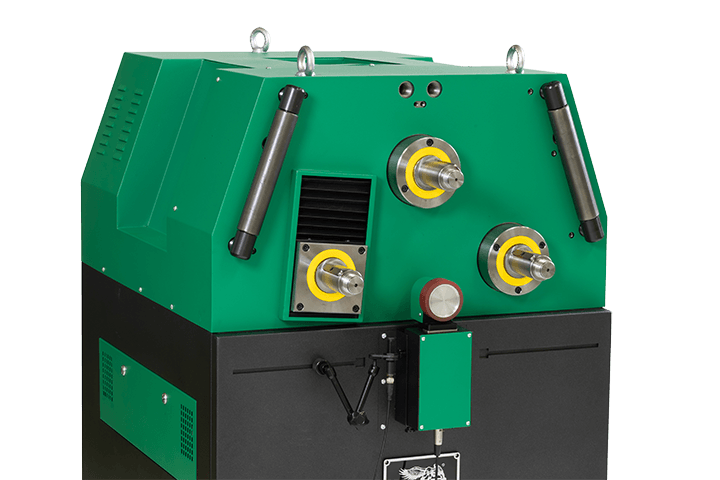

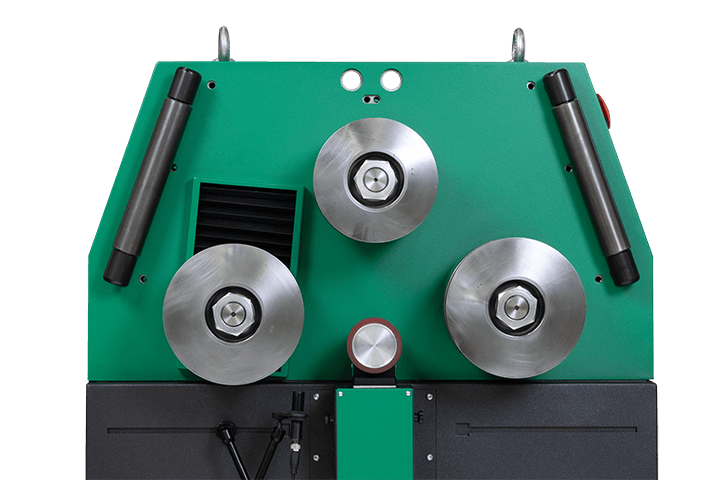

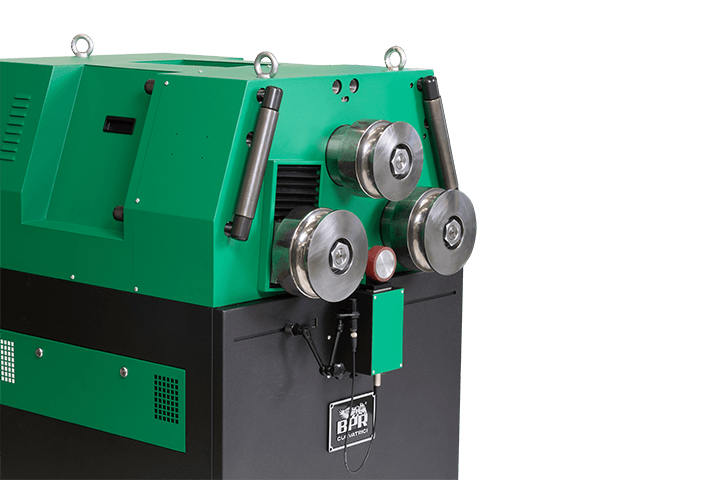

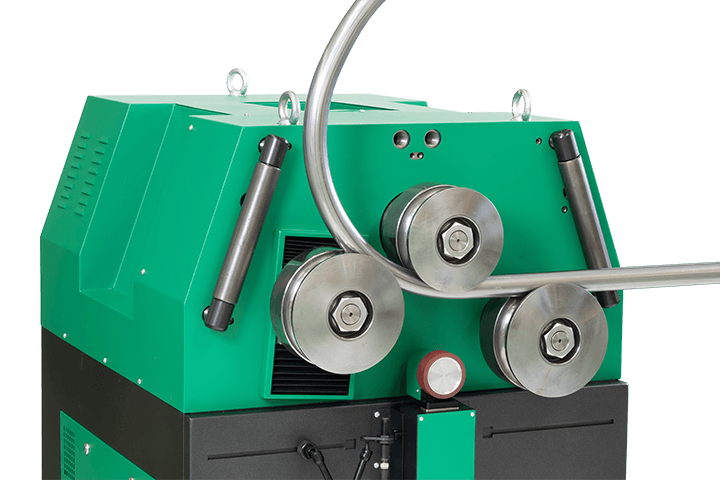

Three driving rollers with smooth back 20MnCr5 with hardness HRC 58 ÷ 60
Steel frame FE 430B, heavily dimensioned
Pressing dowel with Z-Block anti-bending system (patented)
High resistance 38NiCrMo4 steel shafts hardened and ground
Shaft in high strength alloy steel 38NiCrMo4, heat treated and ground to precision tollerance
Clutch coupling mounted on the upper roll (Torque Limiting Device)
Working position with vertical and/or horizontal shafts
Machine weight 670 kg
Console weight 104 kg
Overall dimensions: Base 850 x 1,130 Height 1,260
Console overall dimensions: Base 590 x 710 Height 1,220

CAPACITY BASED UPON MILD STEELS MAX. TENSILE
R=40 kg/mm2 - BASED ON 60.000

ATTENTION: This machine is not supplied with standard rolls.

Download brochure

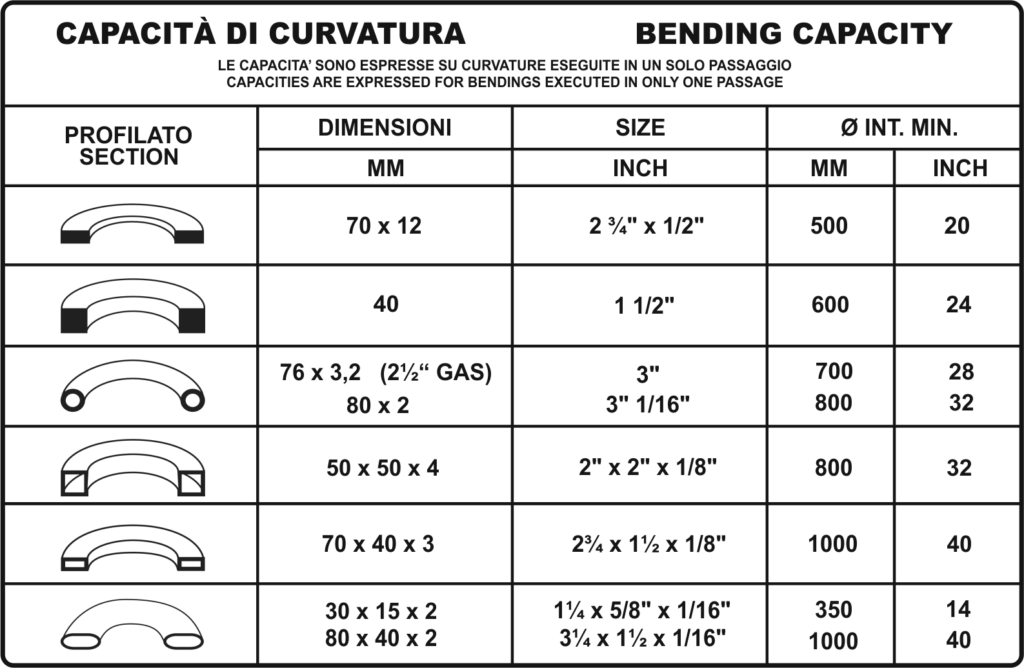

Bending capacity

Computerized numerical control (CNC) bending machine operating in manual and automatic cycle, with direct insertion of the radius and bending data, to obtain many different shapes and developments

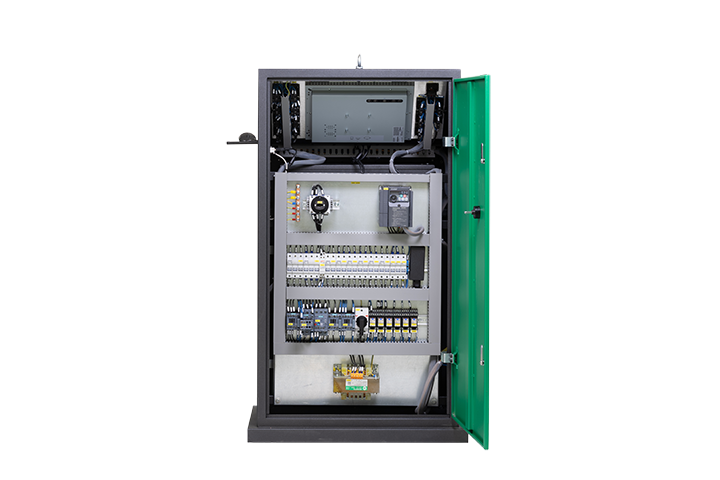

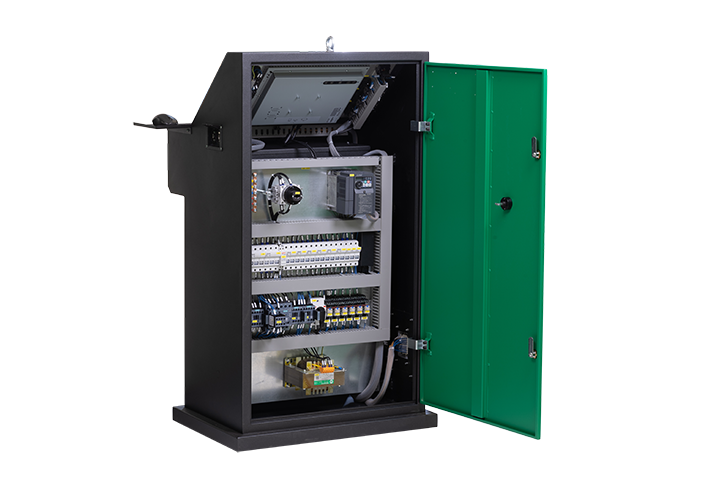

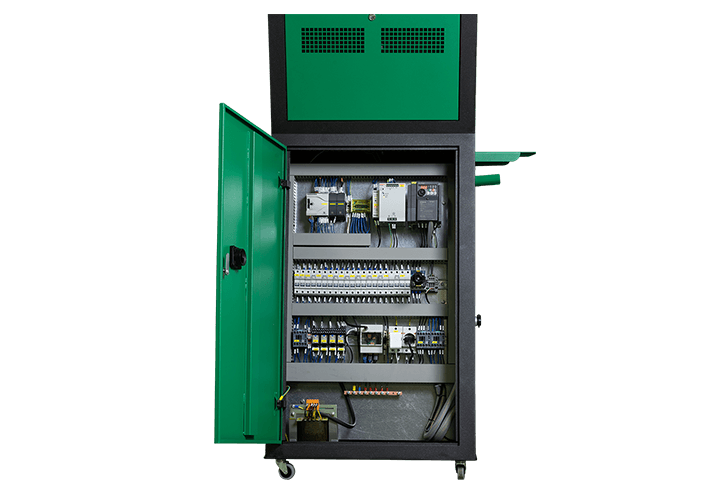

Electronic control consisting of a central 64-bit PLC system for controlling the movement of the A1-A2 axes and a computer- 64 bit 1.4 GHz - 1 GB RAM, complete with 16 GB SD card

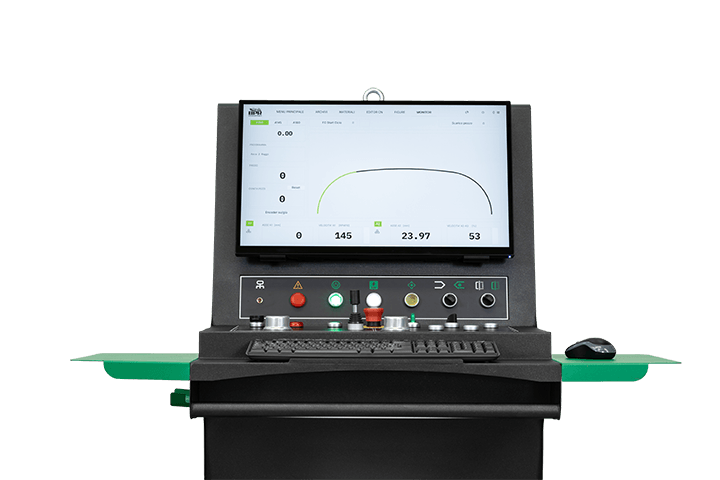

LCD-VGA-HDMI-15 “color active matrix monitor, for the interface with the operator, both assembled on an independent console. Side ports for female USB and LAN RJ45 connections. Retractable control keyboard and control mouse

Multi language BPR bending program “PROBENDING ® system” facilitated with acquisition of the type of material and the section of the profile, possibility of filing the work performed with predefined and parameterized bending with memorization of the program combined with the selected material

Acquisition and transfer of DXF files
Execution of variable radius bends, with interpolated axes system
Ramps of acceleration and deceleration, stop and inversion of the cycle, self-learning program and mirror cycle
Progress reading encoder with pneumatic movement contact, cycle start limit switch, connection for digital archimeter

Electronic control of the speed settings of moving of the bending roll (up to 17 mm/sec) and of the profile displacement (up to 22 RPM) in manual or automatic cycle
Possibility of direct connection with an external personal computer via RJ-45 (LAN) with diagnostics and automatic setup of the machine

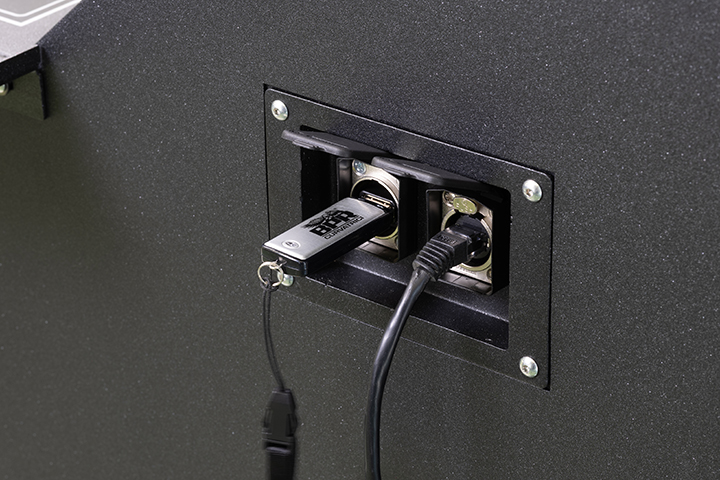

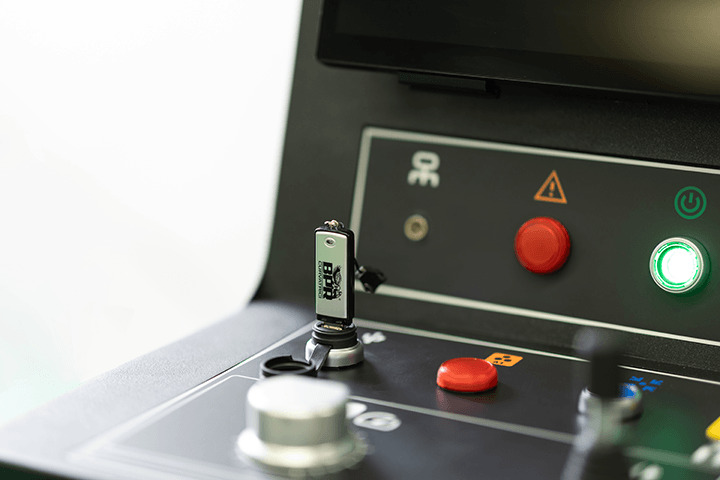

USB connection for transferring and copying of bending programs
Remote connection for remote assistance and preparation for INDUSTRY 4.0

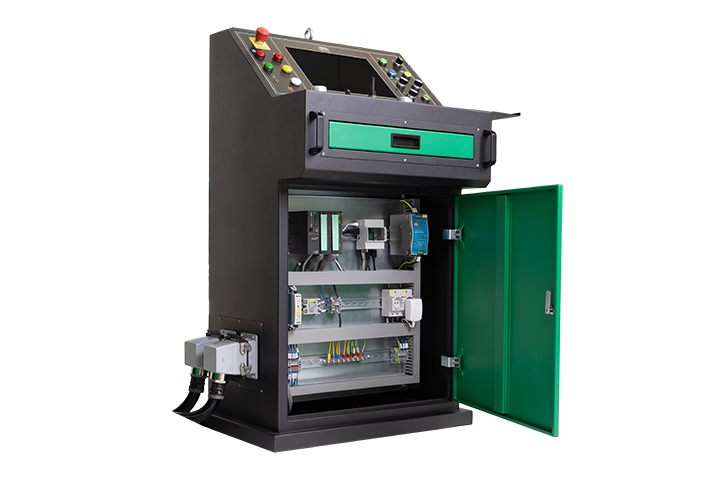

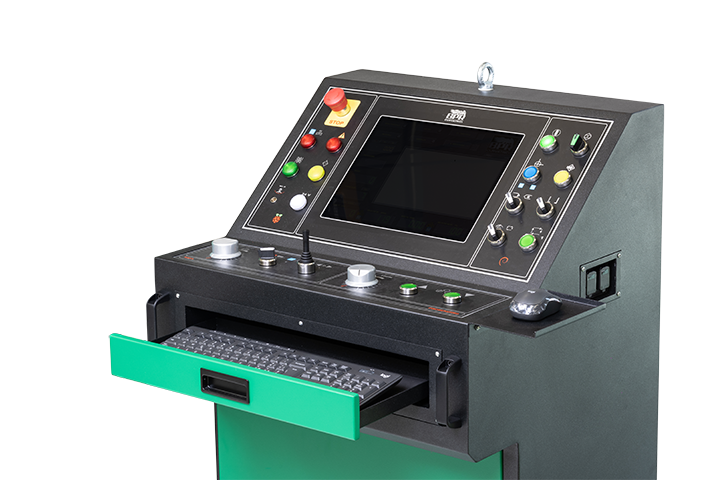

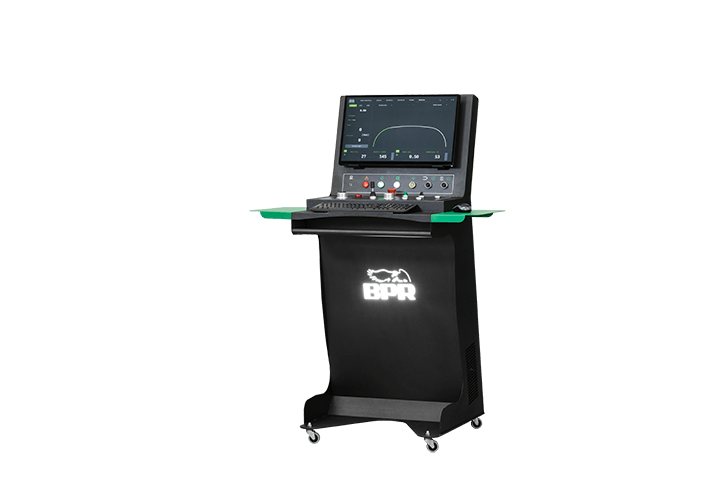

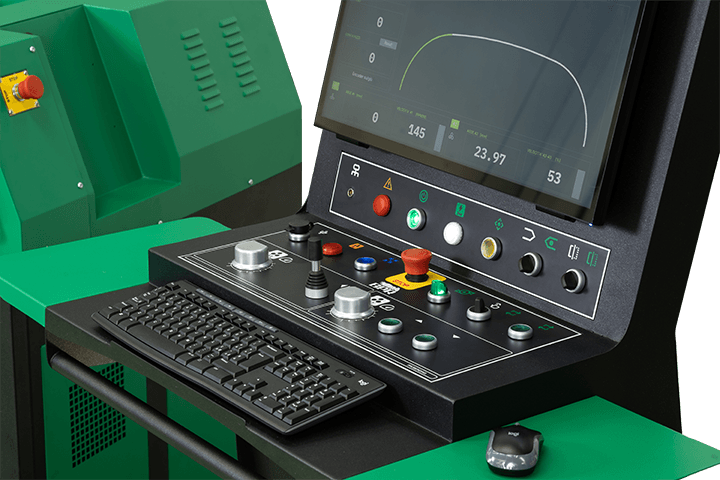

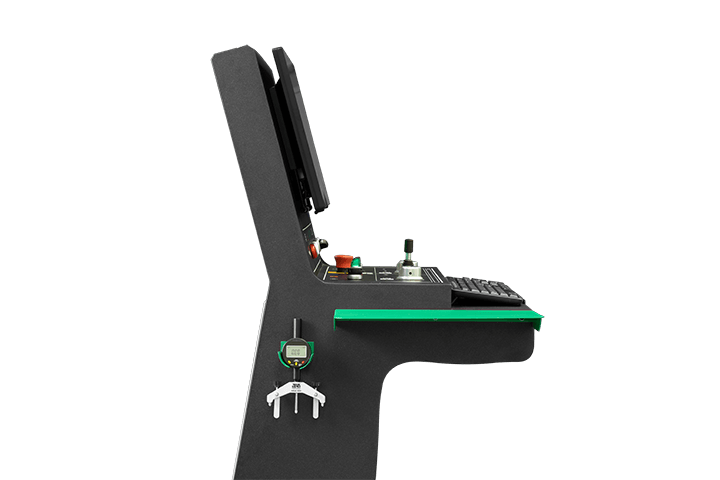

Control console
Rotation control pedal (optional)
Lateral rectifiers

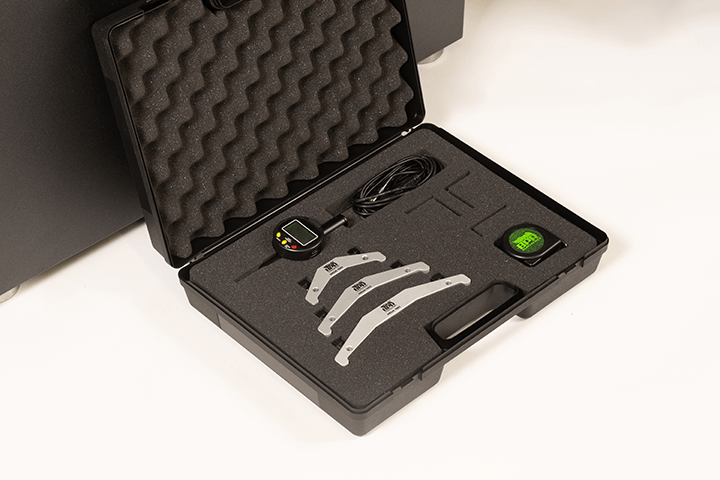

Service tools kit
Instruction manual
