CP20

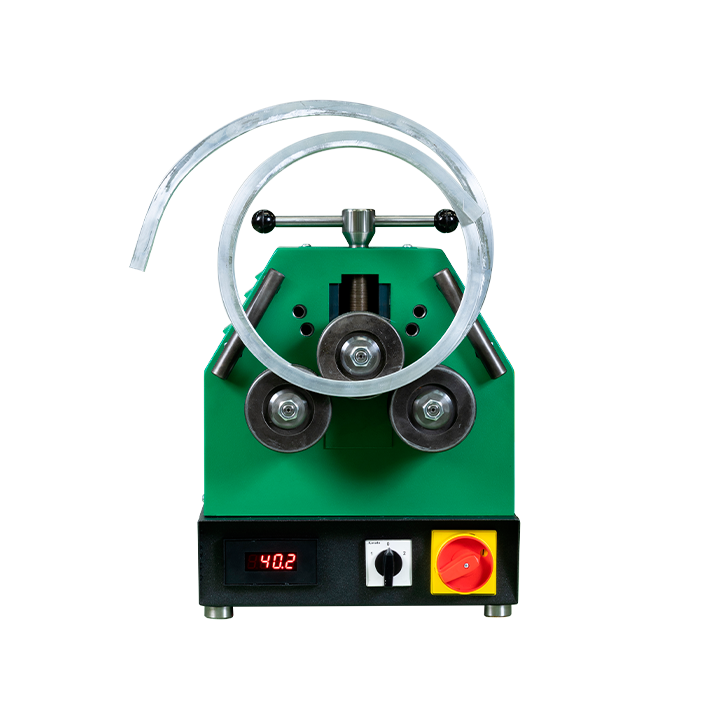

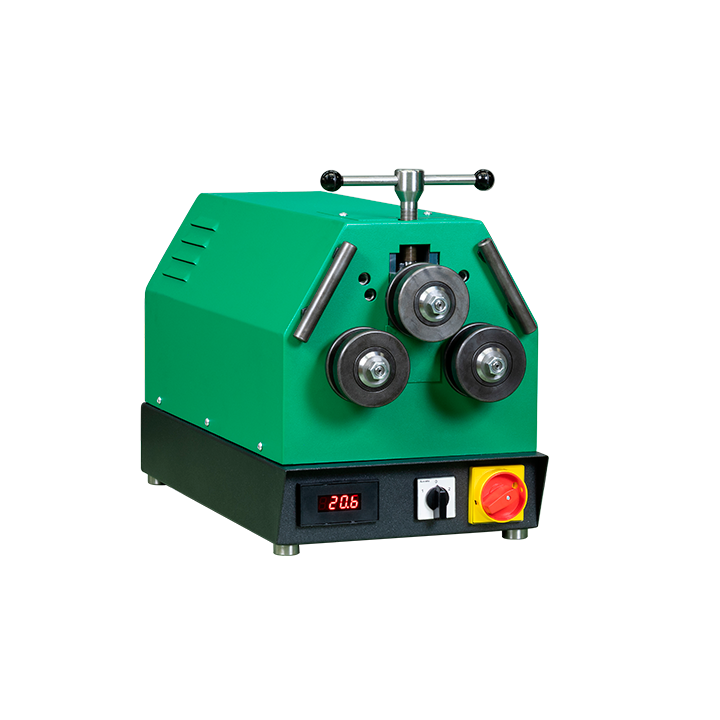

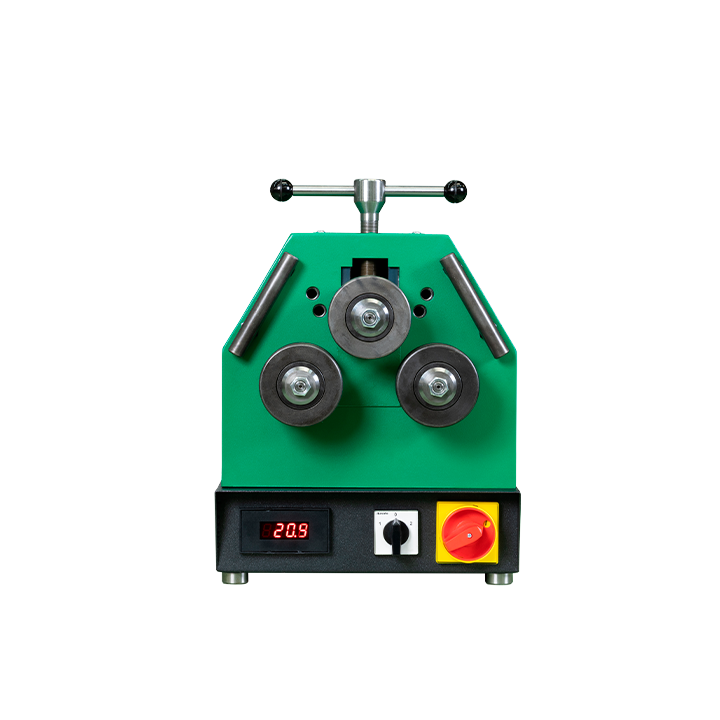

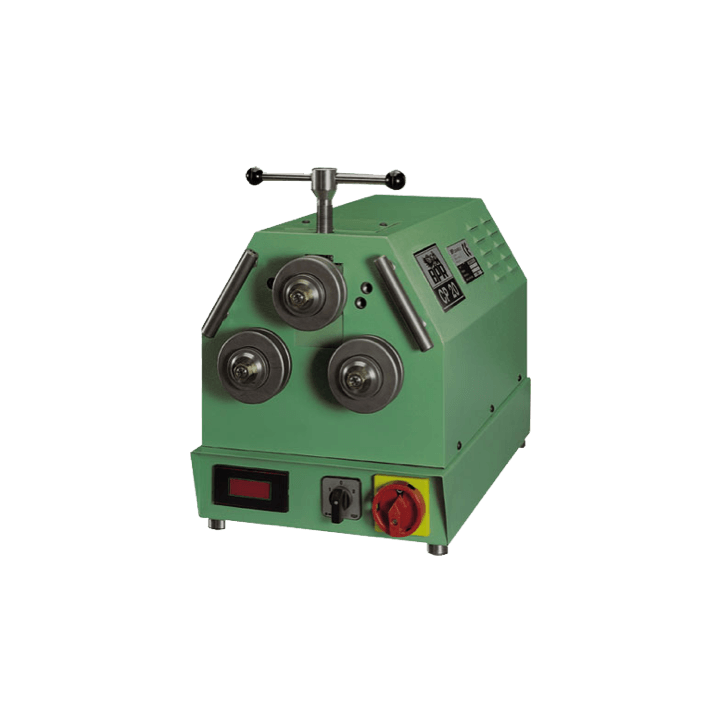

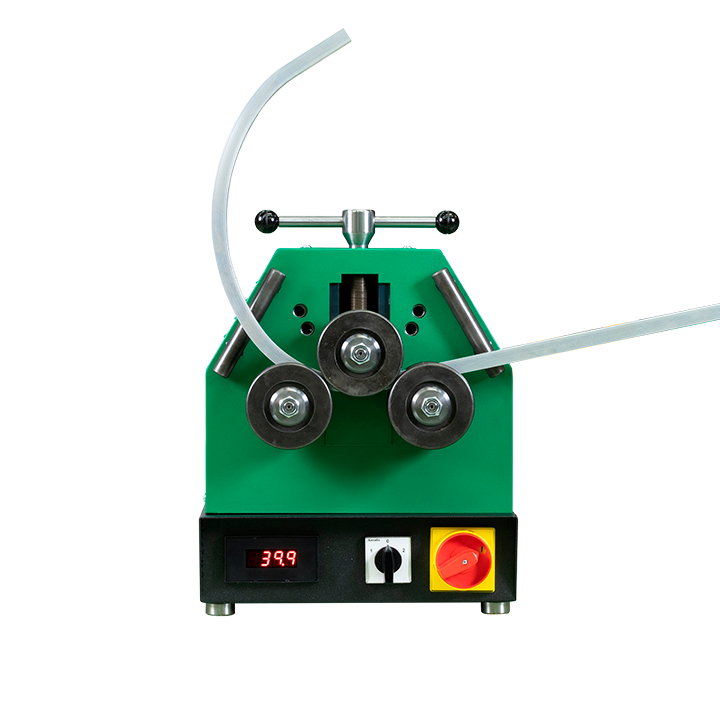

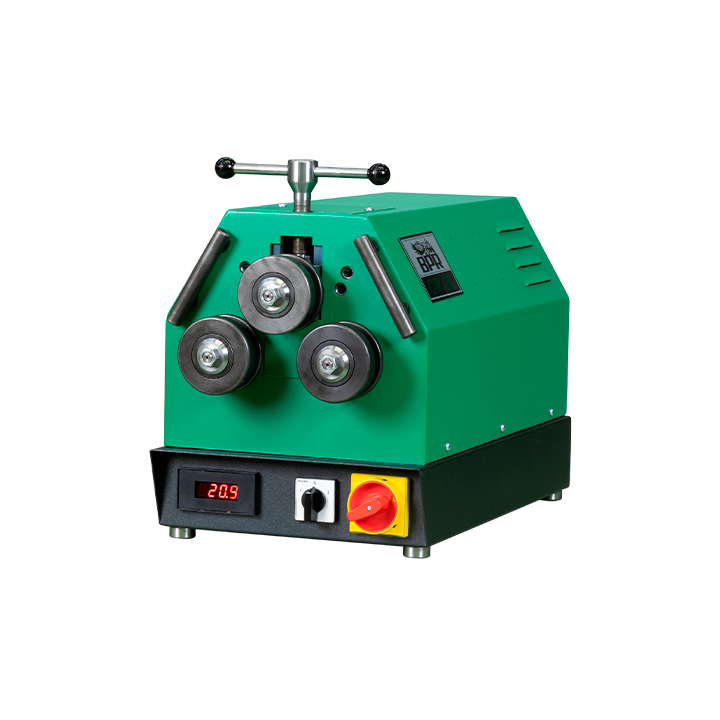

Pyramidal bending machine 2 driven rolls
Manual positioning
Technical Data

Shafts diameter mm 20
Rolls diameter mm 86
Drive motor 0.33 kW
Rolling speed 15 RPM

CAPACITY BASED UPON MILD STEELS MAX. TENSILE
R=40 kg/mm2 - BASED ON 60.000

Download brochure

Mechanical adjustment of upper roll with position monitored by electronic digital display

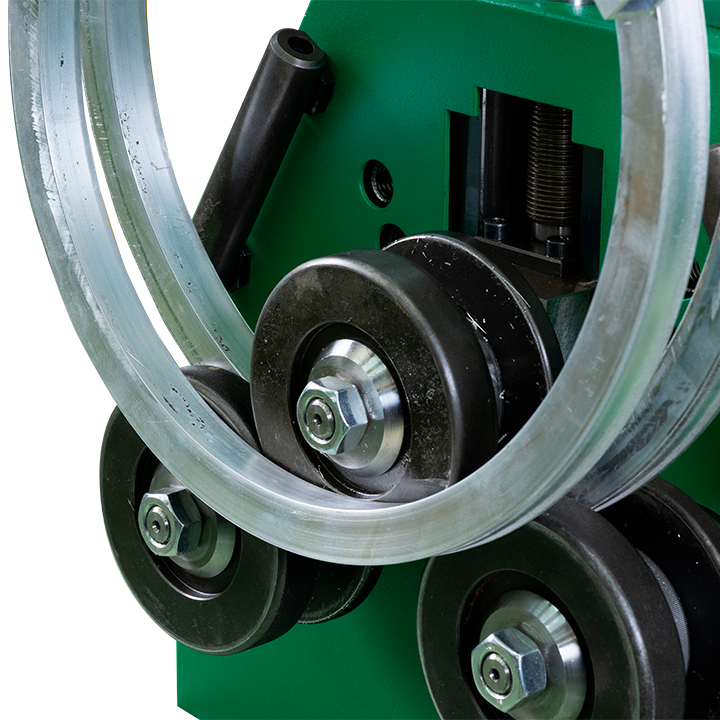

Two driven rolls knurled, for optimal traction
Steel frame FE 430B heavily dimensioned
Shaft in high strength alloy steel 38NiCrMo4, heat treated and ground to precision tollerance

Gears in special alloy steel 38NiCrMo4 with precision ground teeth
Standard Rolls in through treated and hardened steel to 58÷60 HRC
Bench top machine with vertical working position with horizontal shafts

Approximate weight 60 kgs
Machine dimensions: base 320 x 600 x 440mm height

Multi-position lateral material guides
Standard rolls 15Pz
Service tools kit
Instruction manual
Base stand (optional)

CP20 2V

Special version machine with double speed motor

CP 20 M

Special version machine, mono phase at 220 Volts
