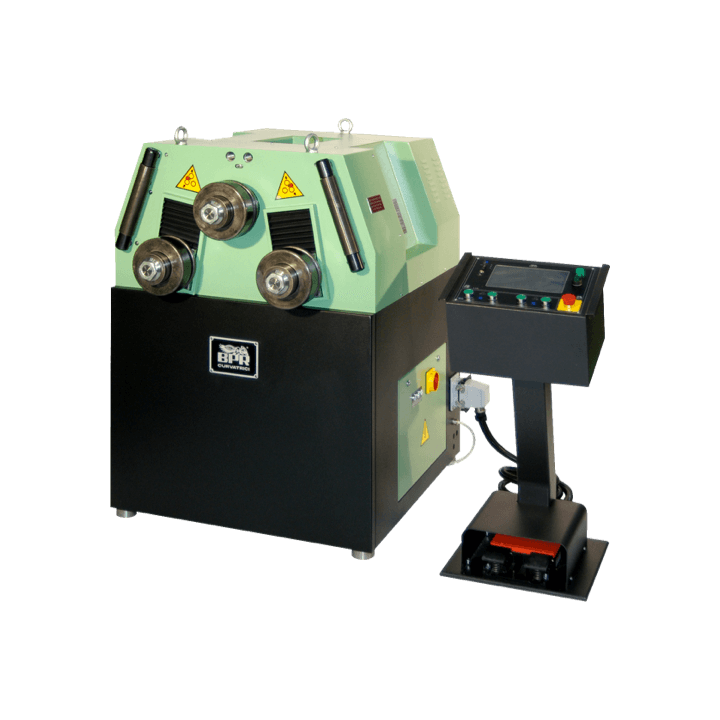

CPD55

Asymmetrical 3 driven rolls
Hydraulic positioning
Technical Data

Shafts diameter mm 55
Shafts useful lenght mm 120
Standard rolls diameter (smooth) mm 180
Dubble pressing rolls - Lower left/right
Power installed - Gear motor 2.20 Kw (50Hz)
Power installed - Pump motor 1.5 Kw + 1,5 (50 Hz)
Maximum working pressure bar 200
Bending direction left an right
Maximum height of insertion mm 89
Working height to center of shafts mm 870 - 975
Thrust power of the hydraulic cylinder kg 15,000 + 15,000
Rotation speed of the shafts G/1′:1-10 (50Hz)
Translation speed of the pressing roll: 0-17 mm/sec
Three driven rolls HRC 58÷60

CAPACITY BASED UPON MILD STEELS MAX. TENSILE
R=40 kg/mm2 - BASED ON 60.000

NOTE: THE PROFILE BENDER IN QUESTION IS SUPPLIED WITHOUT ROLLERS

Steel frame FE 430B, heavily dimensioned
Shaft in high strength alloy steel 38NiCrMo4, heat treated and ground to precision tolerance

Gears in special alloy steel 38NiCrMo4 with precision ground teeth
Clutch coupling mounted on the upper roll (Torque Limiting Device)
Working position of the shafts vertical/horizontal

Hydraulic cylinder thrust

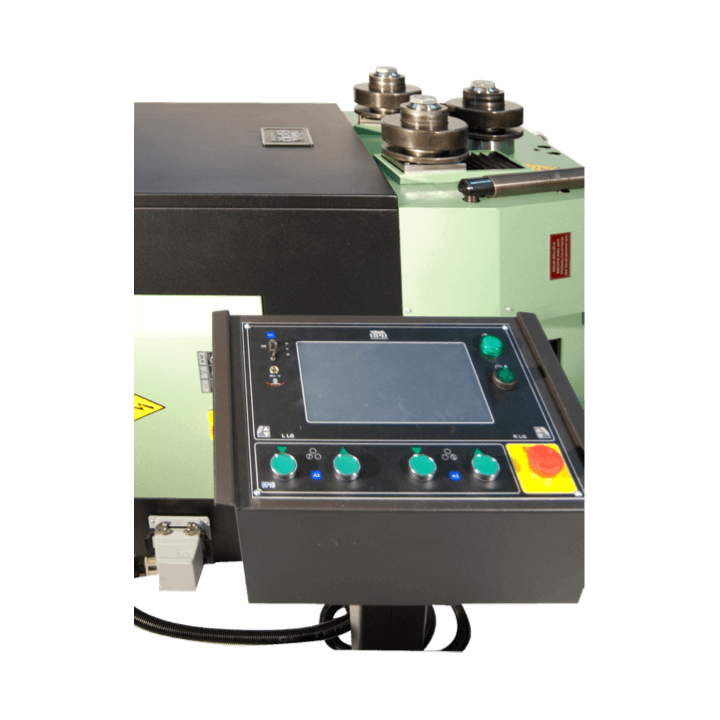

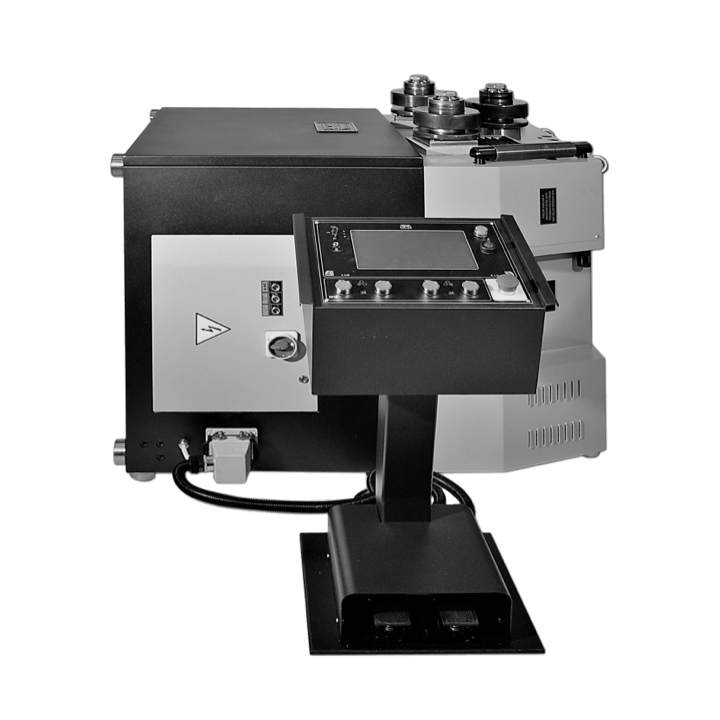

Touchscreen DP10 control panel with functions displaying dual pressing rolls positioning

Machine weight 740 kg + 30
Torque limiter, peripheral speed adaption - Upper Shaft
Standard voltage 400/3/ (50/60)
Machine dimensions: 890 x 1,130 x 1,260 h

Control console
Rotation control pedal
Lateral rectifiers
Service tools kit
Instruction manual

CPD55 REV

In this version an inverter is installed in the special elctric panel that allows the adjustment of the rotation speed from a minimum of 0 g/1′ to a maximum of 20 g/1′
