Pyramidal bending machine 3 driven rolls
Hydraulic positioning
Technical Data

Shafts diameter mm 40
Rolls diameter mm 162
Shafts length mm 94
Working height mm 870
Drive motor 1.5 kW
Pump motor 0.75 kW
Rolling speed 9 RPM

R=40 kg/mm2 - BASED ON 60.000

Download brochure

Hydraulic adjustment of top roll (useful length 95 mm)
Hydraulic cylinder thrust kg 8,800
Normal pressure BAR 230

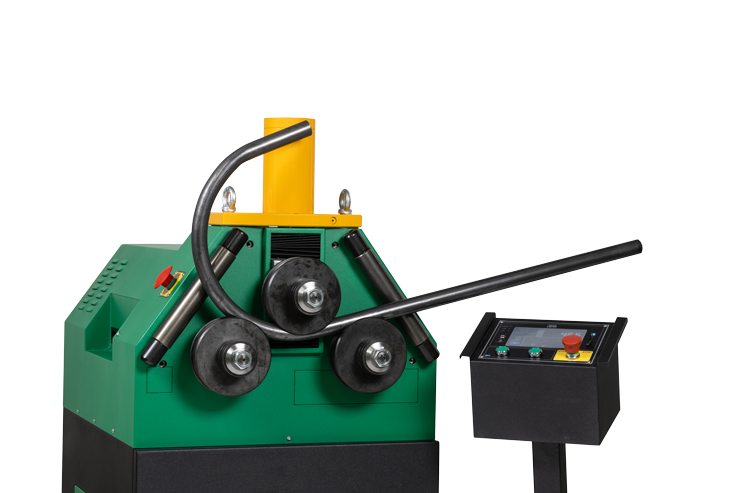

Three driven rolls, smooth surface

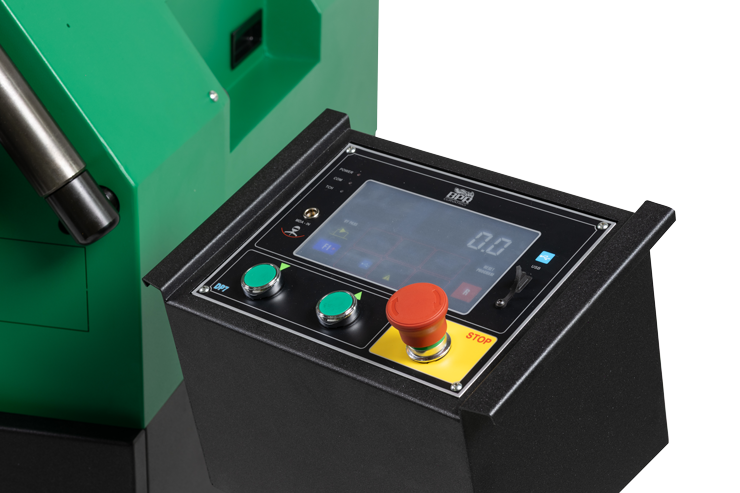

Possibility to write, view and store up to 20 bending programs, each containing up to 20 steps, thanks to the digital control panel DP7 that allows also the import/export of the programs via USB stick
It is possible to connect the archimeter MDA to the panel in order to read directly the bending radius obtained

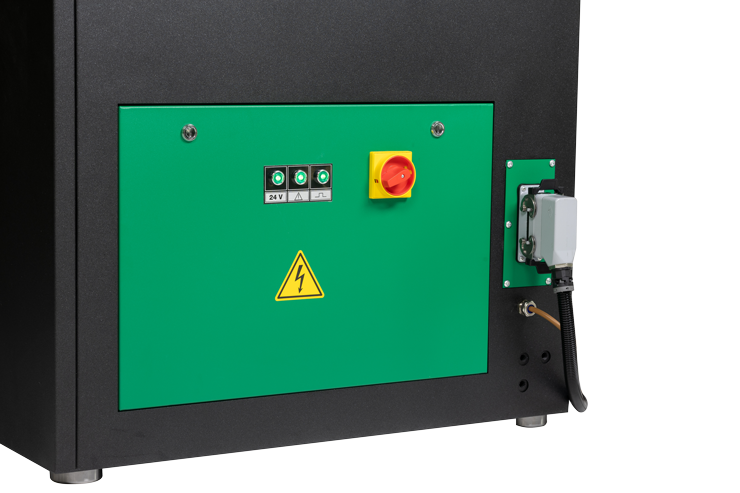

Steel frame FE 430B, heavily dimensioned
Block ways with Z-Block anti-deflection system (patented)

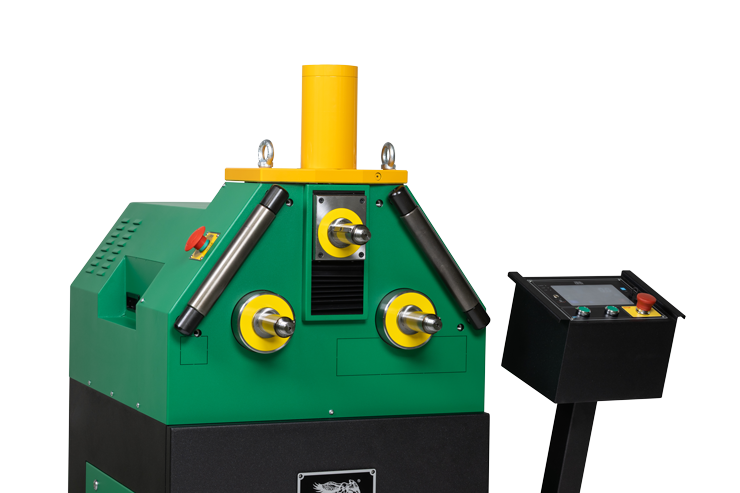

High strength steel 38NiCrMo4 shafts, hardened and ground
Gears in special alloy steel 38NiCrMo4 with precision ground teeth

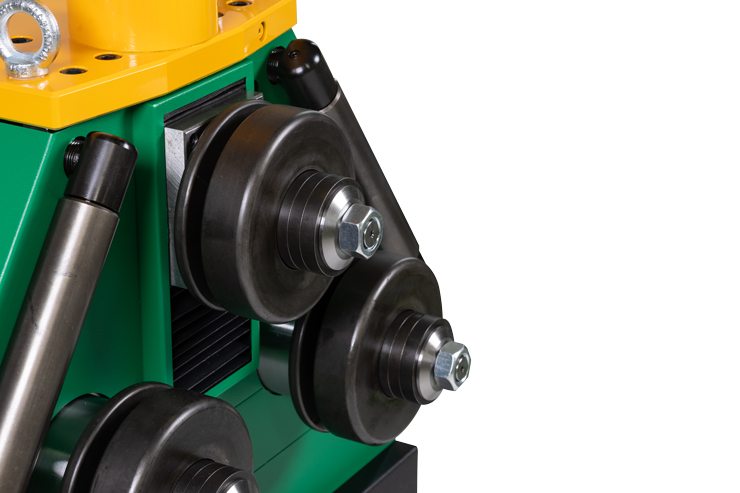

Roll components in nickel-chrome tool steel hardened to 58÷60 HRC
Clutch coupling mounted on the upper roll (Torque Limiting Device)

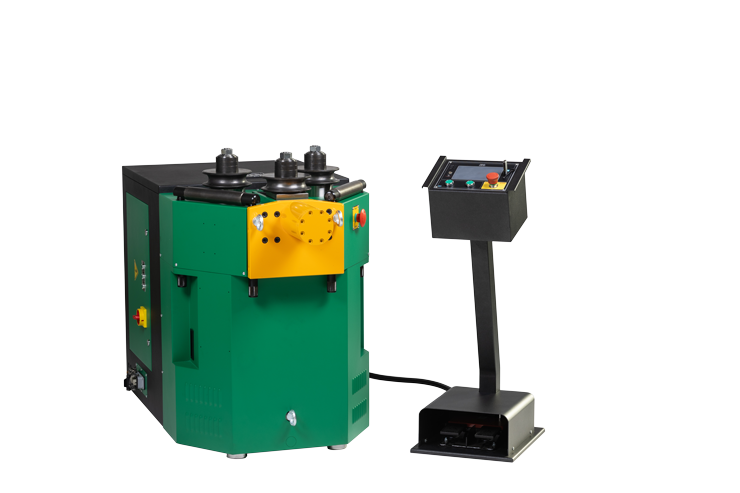

Working position with horizontal and vertical shafts
Approximate weight 530 kgs
Machine dimensions: base 700 x 995 x 1,355 mm height

Control panel
Lateral material guides

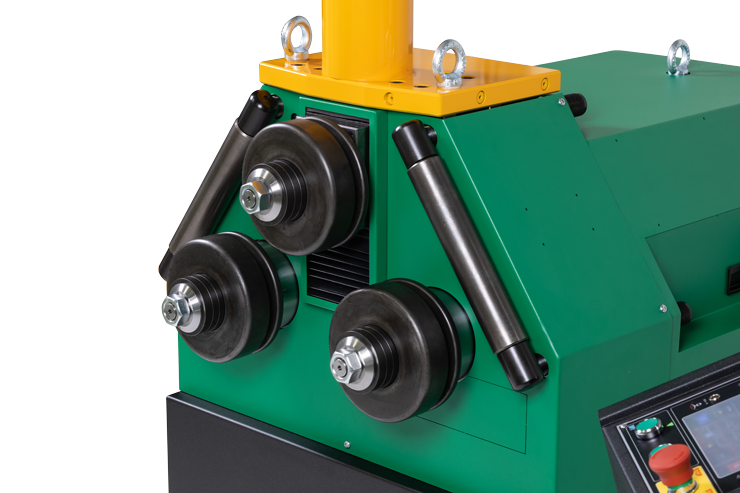

Standard rolls
Service tools
Instruction manual

Scroll tooling ATAR 305
Twist tooling ATRC 25
Stair rail tooling ATSC 70


Special version machine, with variable speed motor from 0 to 18 G/1’
