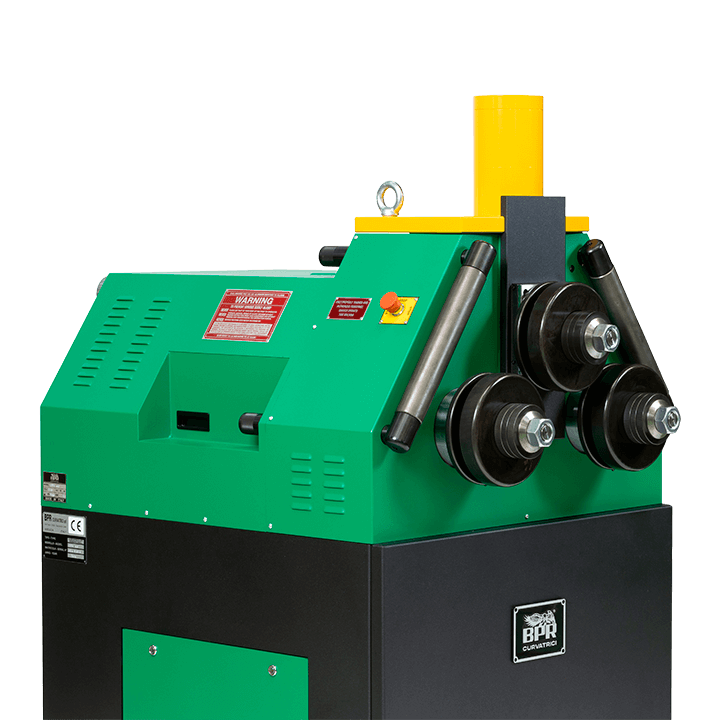

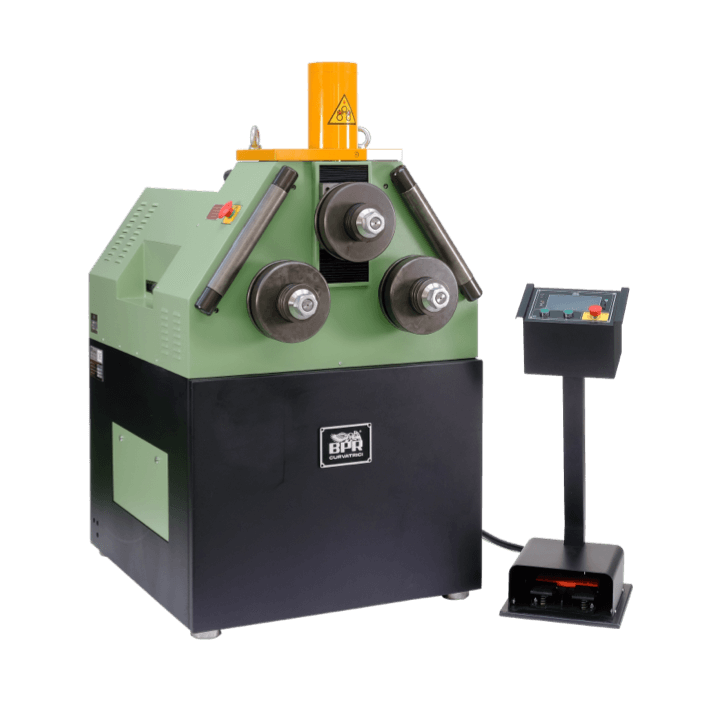

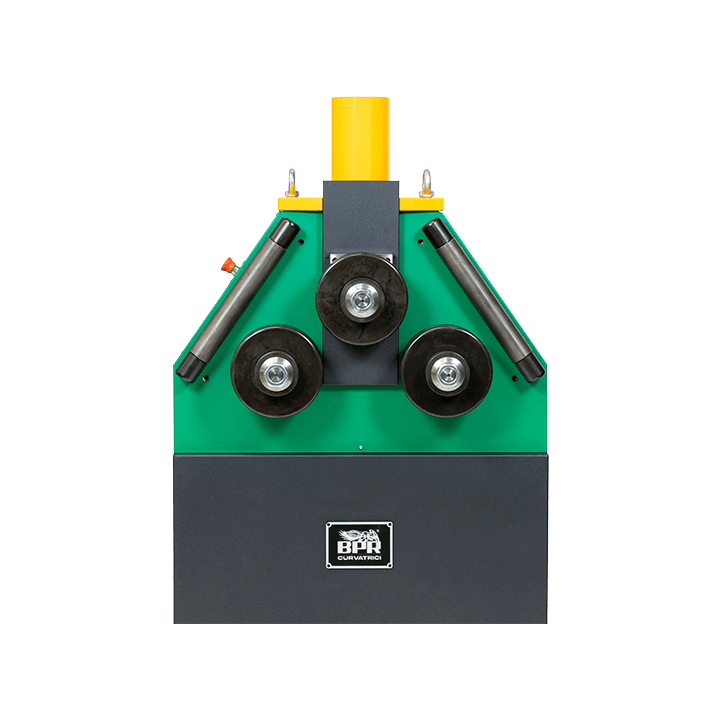

Pyramidal bending machine 2 driven rolls
Hydraulic positioning
Technical Data

Shafts diameter mm 60
Rolls diameter mm 225
Shafts length mm 129
Working height mm 950
Drive motor 2.2 kW
Pump motor 1.5 kW
Rolling speed 7.5 RPM

R=40 kg/mm2 - BASED ON 60.000

Download brochure

Hydraulic adjustment of top roll (useful length 105 mm)
Hydraulic cylinder thrust kg 18,000
Normal pressure BAR 230
Two driven rolls, knurled

Possibility to write, view and store up to 20 bending programs, each containing up to 20 steps, thanks to the digital control panel DP7 that allows also the import/export of the programs via USB stick
It is possible to connect the archimeter MDA to the panel in order to read directly the bending radius obtained

Steel frame FE430B, heavily dimensioned
Block ways with Z-Block anti-deflection system (patented)
High strength steel 38NiCrMo4 shafts, hardened and ground

Gears in special alloy steel 38NiCrMo4 with precision ground teeth
Roll components in nickel-chrome tool steel hardened to 58÷60 HRC

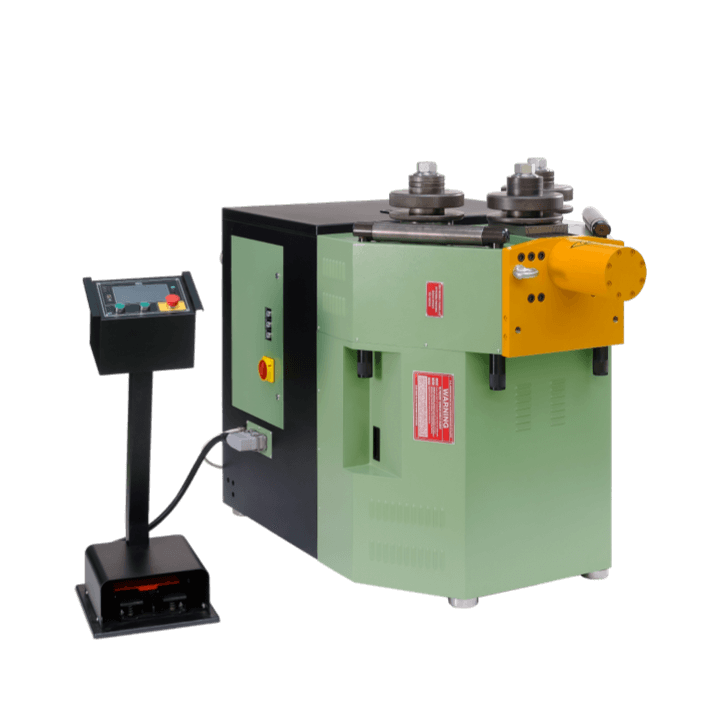

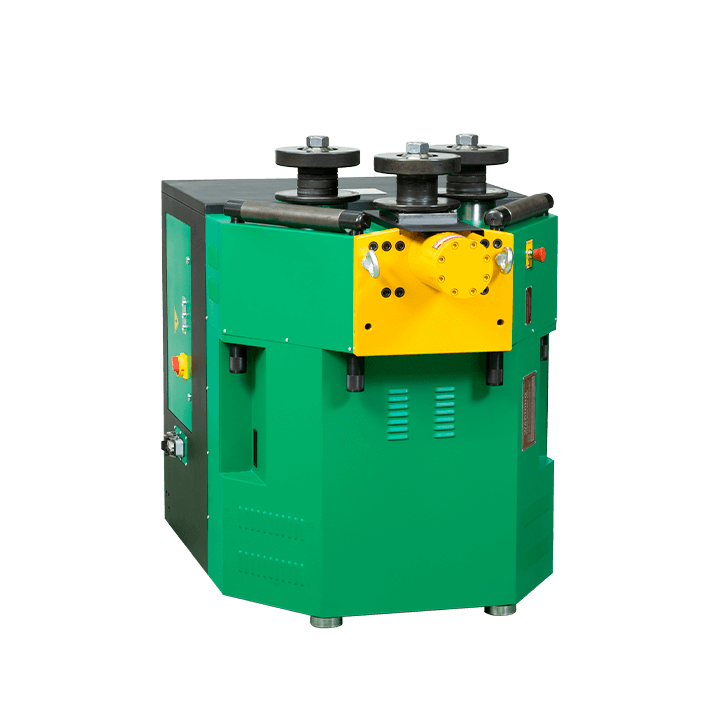

Working position with horizontal and vertical shafts

Approximate weight 1,100 kgs
Machine dimensions: base 950 x 1,300 x 1,610 mm height

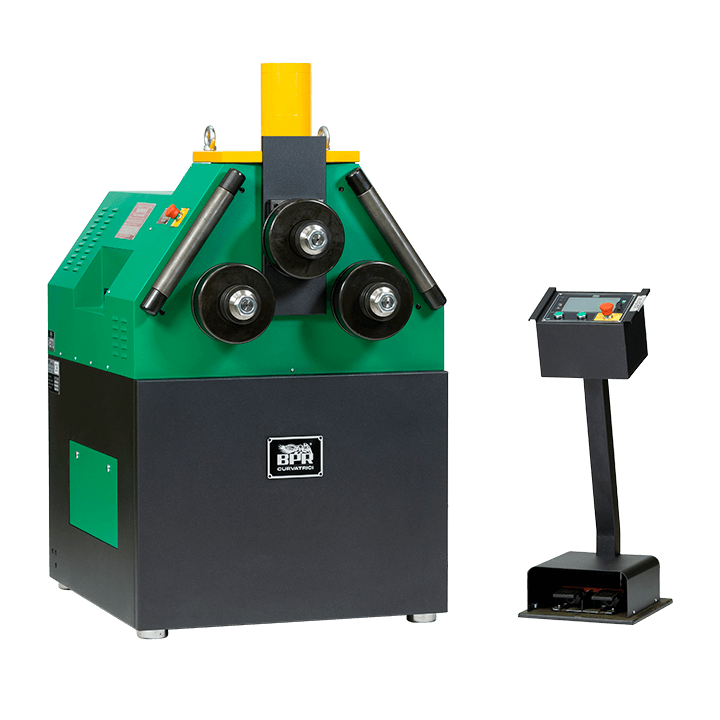

Control panel
Lateral material guides
Standard rolls
Service tools
Instruction manual


Special version machine, with variable speed motor from 0 to 15 G/1’
