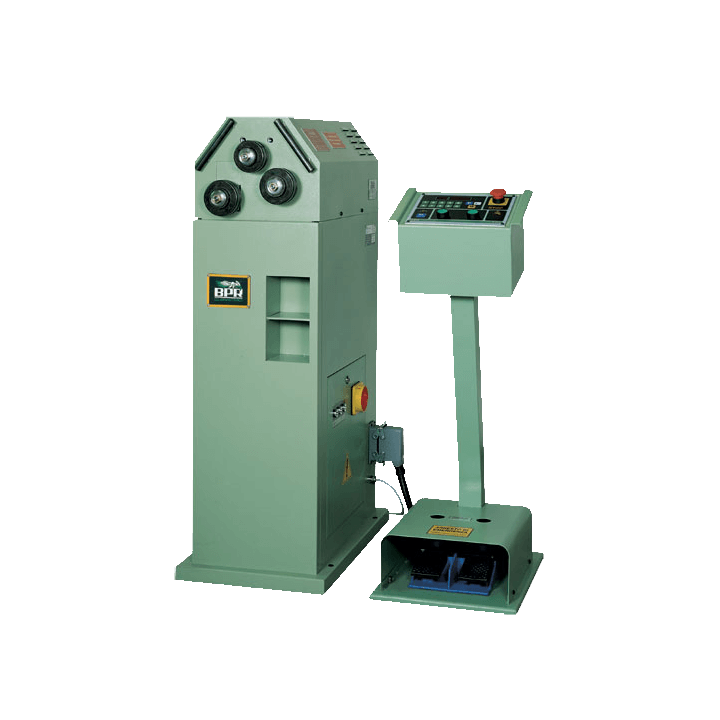

CPS20

Asymmetrical bending machine Hydraulic positioning
Technical Data

Shafts diameter mm 20
Rolls diameter mm 86
Shafts length mm 39
Working height mm 930
Drive motor 0.37kW
Pump motor 0.37 kW
Rolling speed 14 RPM

PERFORMANCES ARE SUBORDINATE AT THE RESISTANCE OF THE MATERIAL
R=40 kg/mm2 - BASED ON 60.000

Download brochure

Hydraulic adjustment of lower roll
Hydraulic cylinder thrust kg 1,150 (1.15 T)
Normal pressure BAR 160
Three driven rolls, smooth surface

Steel frame FE430B, heavily dimensioned
Roll components in nickel-chrome tool steel hardened to 58÷60 HRC
High strength steel 38NiCrMo4 shafts, hardened and ground
Gears in special alloy steel 38NiCrMo4 with precision ground teeth

Working position with horizontal shafts

Possibility to write, view and store up to 20 bending programs, each containing up to 20 steps, thanks to the digital control panel DP7 that allows also the import/export of the programs via USB stick
It is possible to connect the archimeter MDA to the panel in order to read directly the bending radius obtained

Approximate weight 126 kgs
Machine dimensions: base 630 x 380 x 1,140mm height

Double-position lateral material guides
Standard rolls
Control panel
Service tools
Instruction manual

CPS20 2V

Special version machine with double speed motor
