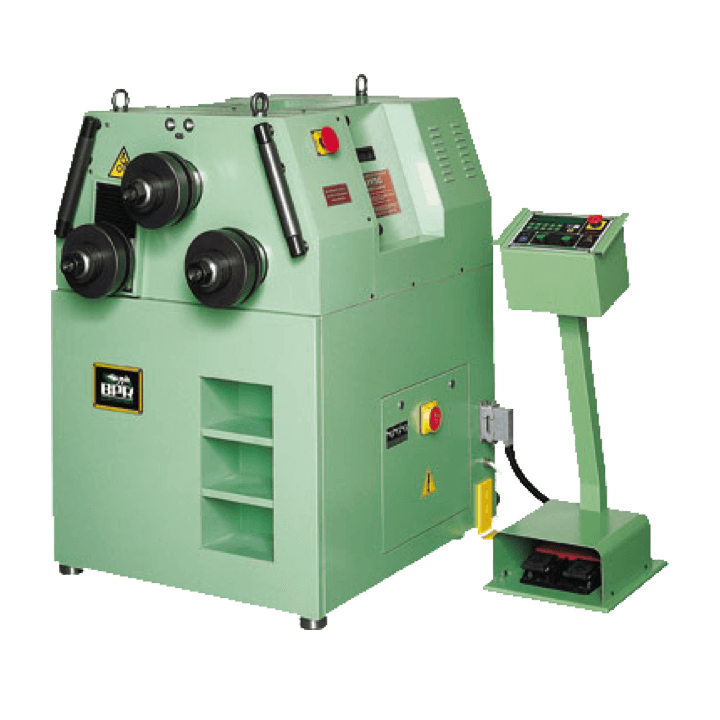

CPS50

Asymmetrical bending machine
Hydraulic positioning
Technical Data

Shafts diameter mm 50
Rolls diameter mm 195
Shafts length mm 110
Working height mm 835
Self braking drive motor 2.2 kW
Pump motor 1.1 kW
Rolling speed 11 RPM

PERFORMANCES ARE SUBORDINATE AT THE RESISTANCE OF THE MATERIAL
R=40 kg/mm2 - BASED ON 60.000

Download brochure

Hydraulic adjustment of lower left roll
Hydraulic cylinder thrust kg 13,500
Normal pressure BAR 170
Three driven rolls, smooth surface

Steel frame FE430B, heavily dimensioned
Block ways with Z-Block anti-deflection system (patented)
Roll components in nickel-chrome tool steel hardened to 58÷60 HRC
High strength steel 38NiCrMo4 shafts, hardened and ground

Gears in special alloy steel 38NiCrMo4 with precision ground teeth
Clutch coupling mounted on the upper roll (Torque Limiting Device)
Working position with horizontal and vertical shafts

Possibility to write, view and store up to 20 bending programs, each containing up to 20 steps, thanks to the digital control panel DP7 that allows also the import/export of the programs via USB stick
It is possible to connect the archimeter MDA to the panel in order to read directly the bending radius obtained

Approximate weight 660 kgs
Machine dimensions: base 850 x 1,130 x 1,260 mm height

Double-position lateral material guides
Standard rolls
Control panel
Service tools
Instruction manual

CPS50 REV

Special version machine with variable rotation speed from 0 to 20 RPM

CPS50 A

Special automatic version with variable rotation and translation speed, suitable for mass production
