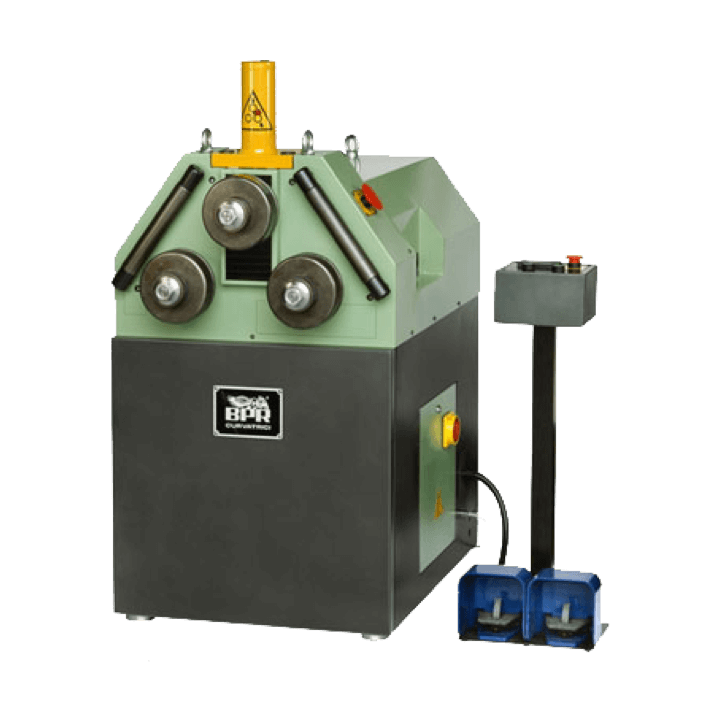

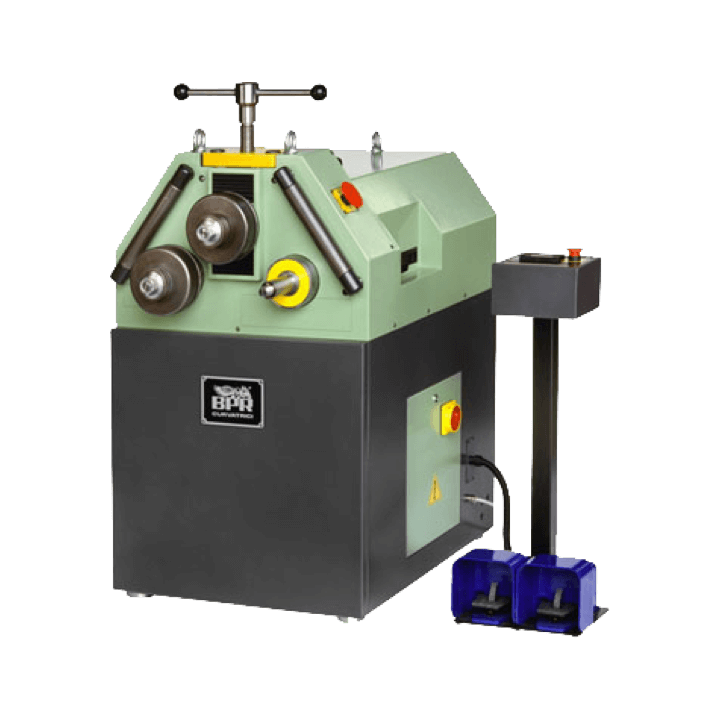

Pyramidal bending machine 2 driven rolls
Manual positioning
Technical Data

Shafts Diameter mm 40
Rolls Diameter mm 162
Shafts Lenght mm 94
Working height mm 820
Rotation Speed RPM 8 (50 - 60 Hz)
Gear Motor kW 1.1 - 1.32 (50 - 60 HZ)
Pump Motor kW 0.55 - 0.66 (50 - 60 HZ)

R=40 kg/mm2 - BASED ON 60.000

Download brochure

Two driven rolls, knurled for optimal traction
Mechanical adjustment of top roll with position

Steel frame FE 430B heavily dimensioned
Shafts in high strength alloy steel 38NiCrMo4, heat treated and ground to precision tolerance
Standard rolls in through treated and hardened steel to 58÷60 HRC
Gears in special alloy steel 38NiCrMo4 with precision ground teeth

Commands plan separate from the machine body complete with the display of position, low voltage pedalboard to control right/left rotation and emergency stop palm button
Horizontal and vertical working position

Weight kg 350
Dimension mm: Base 670 x 980 x 1,300 h

Special bidimensional rectifiers for bend angular inside wing
Tube rolls and special rolls
Mechanical stop for locking the central roll

Lateral material guides
Standard rolls
Service tools
Instruction manual

Scroll tooling ATAR 305
Twist tooling ATRC 25
Stair rail tooling ATSC 70
